Esprit Restoration

Esprit Builder#

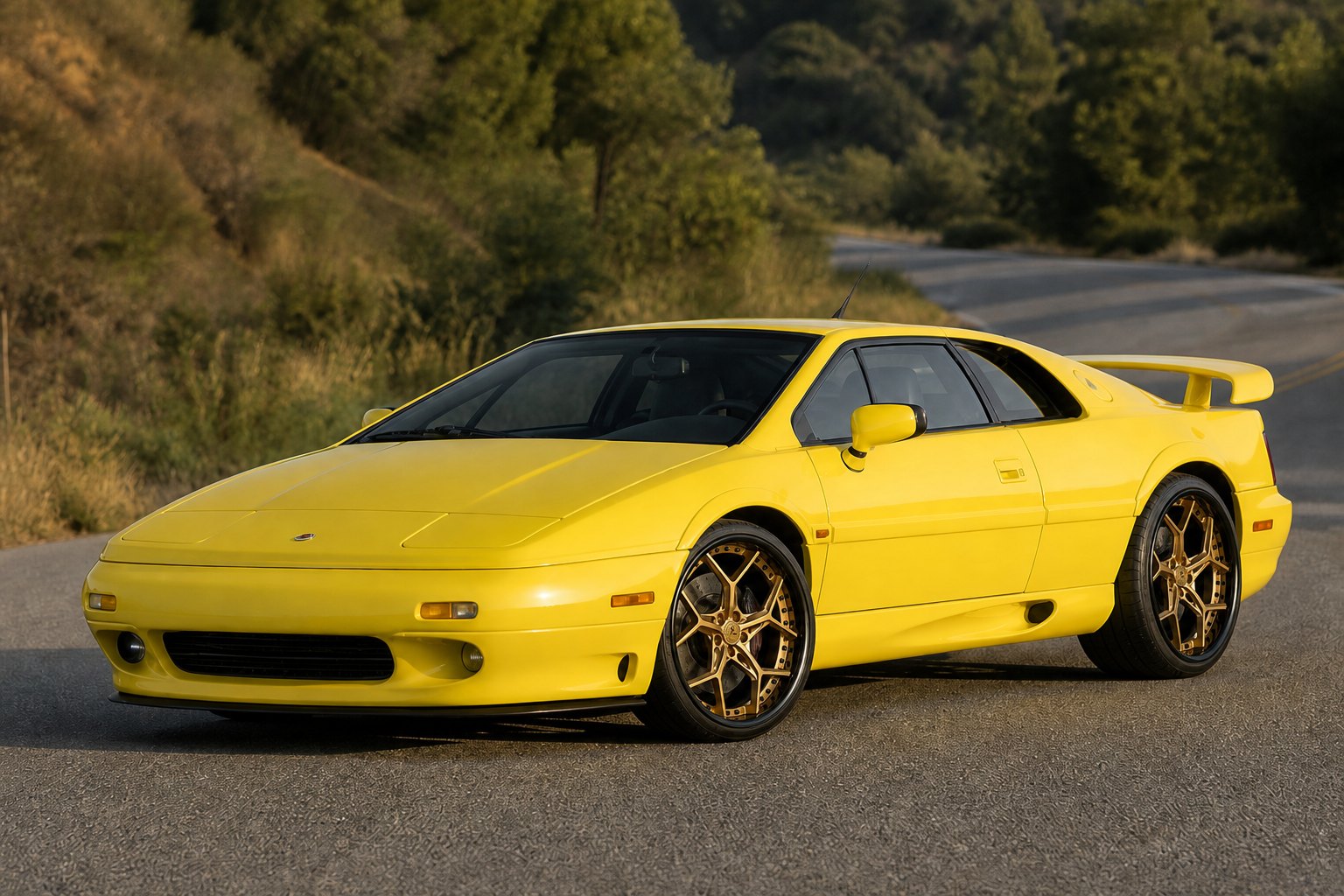

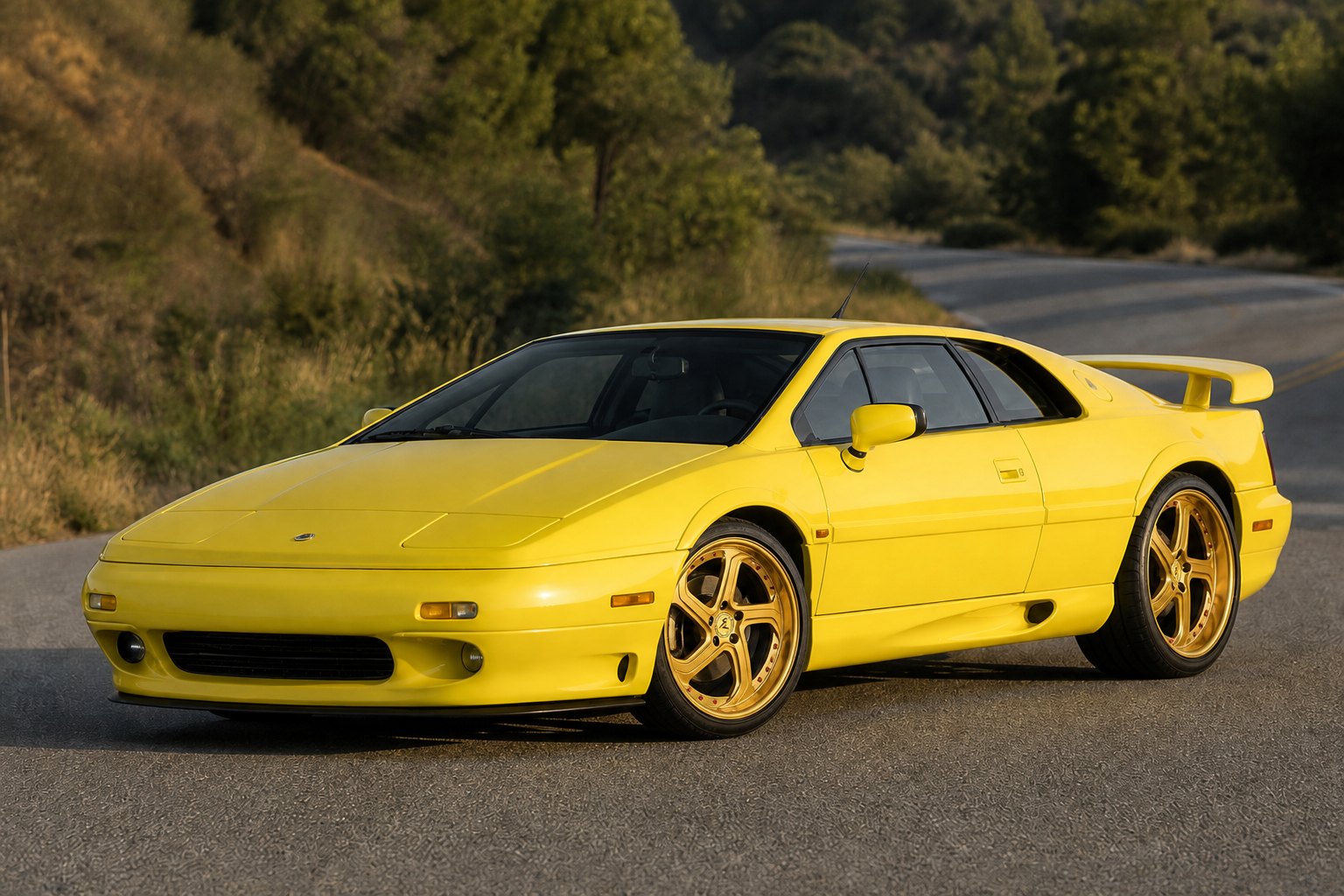

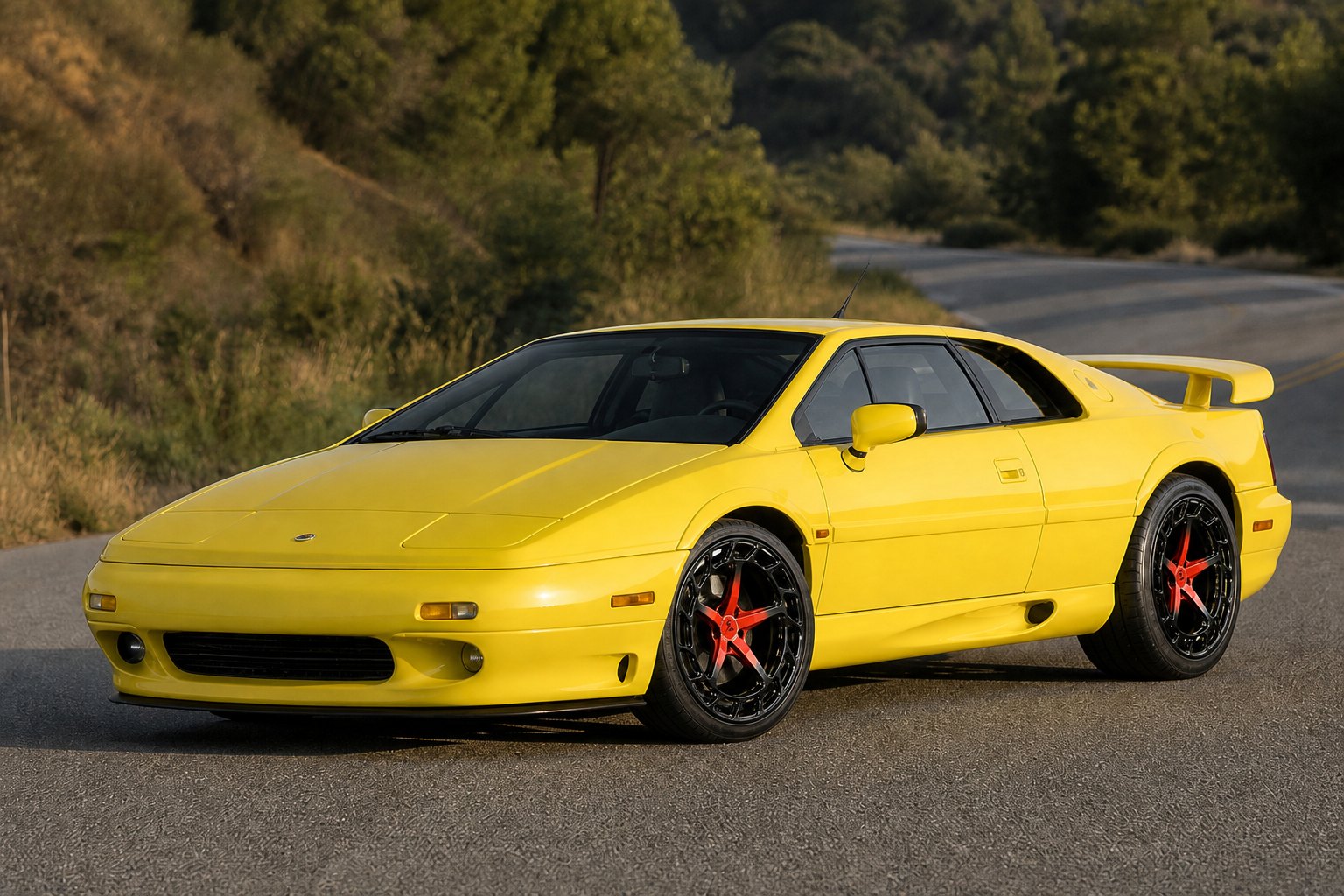

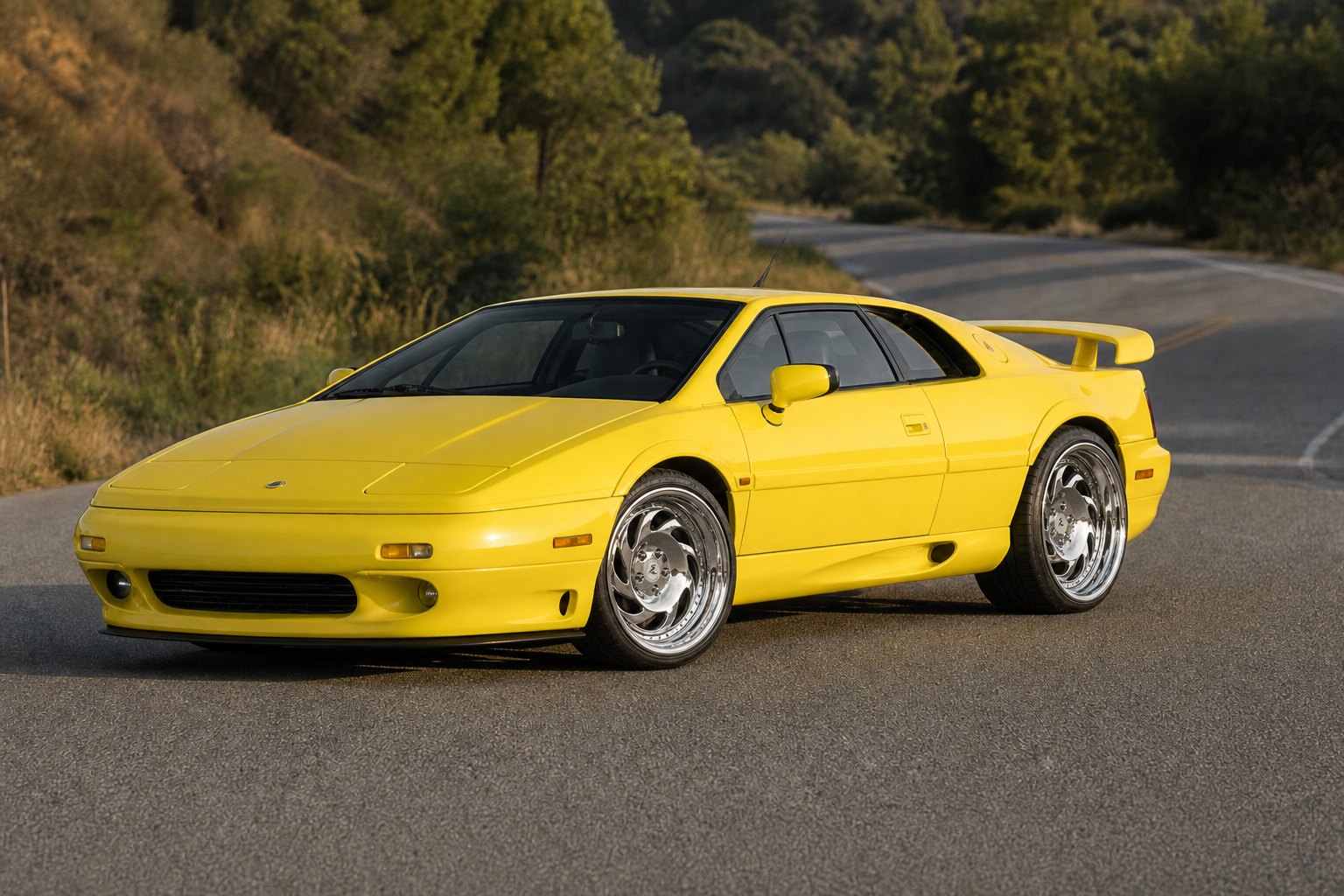

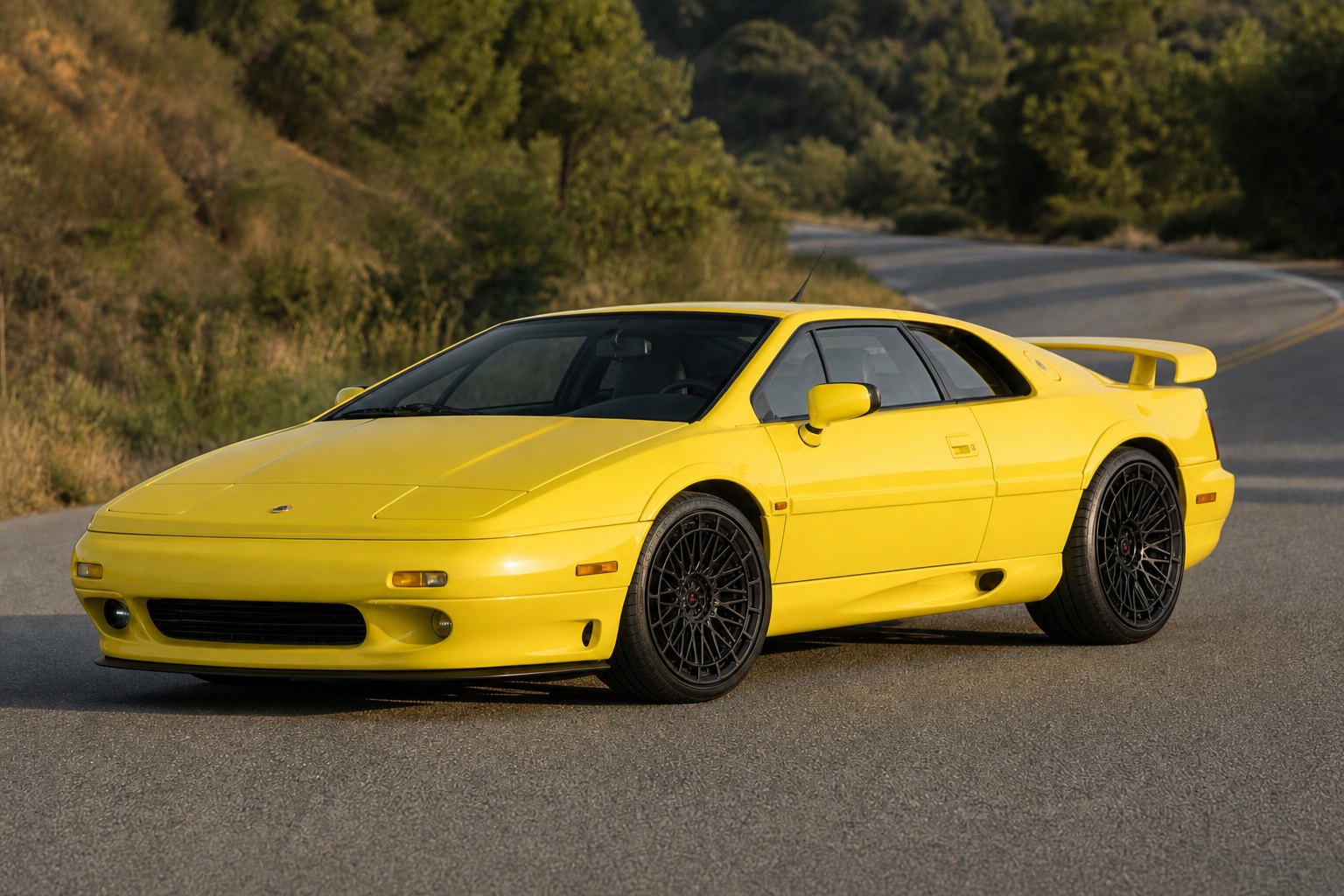

Pick the paint, wheels, tires and upgrades from this page to see them on the car, with a running total and a parts list with prices and links. Options that don't work together are greyed out. Turn on X-ray to see the engine, gearbox, turbos and coolers, with your upgrades highlighted.

3D model: "1996 Lotus Esprit V8" by Ddiaz Design, licensed under CC BY-NC-SA 4.0. The wheels, tires, headlights and paint are changed in the browser, and the parts in the X-ray view are simplified shapes, not to scale.

Price Estimate#

🧮 Assumptions: Labor rate assumed at $160/hr. Parts prices are current public estimates and may vary with shipping, taxes, currency conversion, and availability. Items marked TBD need inspection or a supplier quote. Totals below exclude sales tax.

Summary by System#

Current Running Totals#

• Parts selected with prices available today, excluding TBD items and paint/interior/engine specifics: ~$16,400–$17,900
• Labor for the same items at $160/hr: ~$9,900–$12,600
• Subtotal for the above scope: ~$26,300–$30,500

📝 Exclusions: paint and bodywork, undefined engine upgrades with JAE, seat re‑trim if full reupholstery is chosen, LED headlight kit price, taxes, shipping, alignment, fluids, incidentals, and any corroded or seized hardware discovered during disassembly.

Notes and Links#

• Turbos: PNM rebuild service or Turbo Pascher Stage 1 hybrid; see the Turbos section for other shops
• Cooling radiator option: Wizard kit, $1,349, Pro Alloy radiator
• Charge cooler: Pro Alloy Twin kit with 15–25 hrs install
• Oil cooling: PNM oil cooler or ISR 16‑row core
• ECU: Marcus Red Race chip ~$998–$1,222; see the ECU section for milder chips and standalone ECUs
• Transmission: GTO Racing / Quaife UN1 kit and Quaife ATB (~$1,401 from a Czech dealer); kit prices on application
• Tires: Michelin Pilot Sport All Season 4 $1,164 a set on 245/40R17 fronts; see the Tires section for summer and factory-size sets

Next decisions to finalize for a firmer quote#

• Choose tires: summer or all-season, and 245 fronts with rack lock stops or the factory 235 size
• Pick radiator option: Pro Alloy vs Wizard (if not committed)
• Define engine upgrade scope with JAE

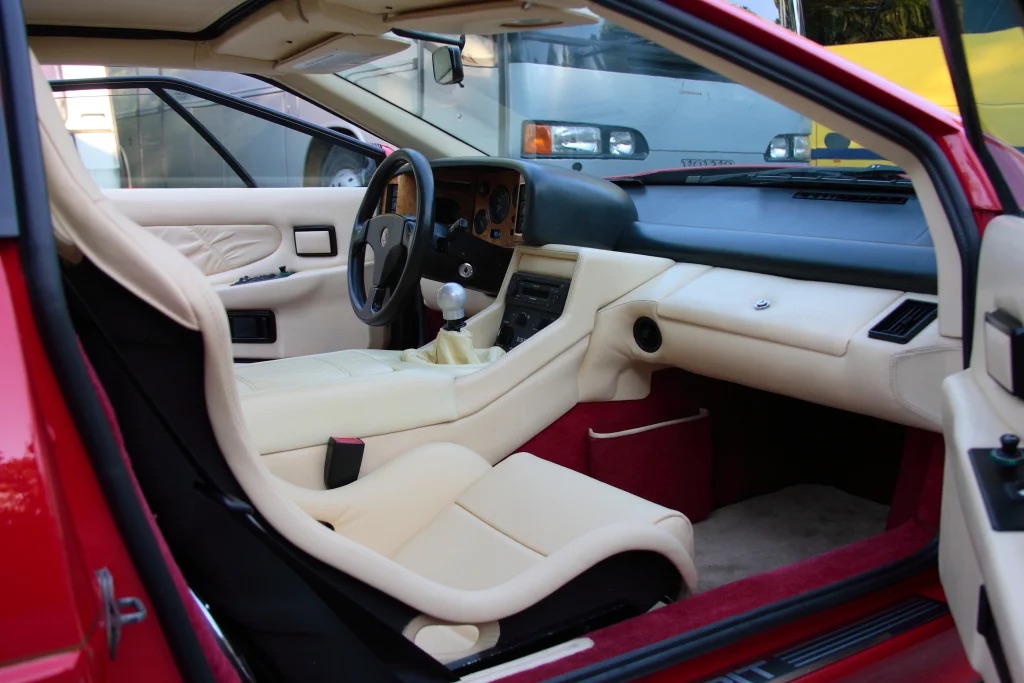

• Confirm whether interior is full re‑trim or selective repairs
• Obtain paint and LED headlight kit quotes

Color#

Decision: Yellow#

Bright lemon yellow with a slight green tint, matching the paint sample below. Take the physical sample to the paint shop, because colors in photos change with the light.

Engine#

Decision: Ask JAE - upgrade as much as possible#

forged pistons, stronger rods, better bearings, ARP studs

📄 engineparts.xlsx

Rebuild parts by store#

Prices checked on October 15, 2026. Every price below links to the store's product page so you can confirm it.

How to read these prices#

• UK prices are shown without VAT. SJ Sportscars, PNM, SWLC and Roose don't charge UK VAT (20%) on orders shipped to the US.
• USD amounts use £1 = $1.325, the mid-market rate on October 15, 2026. Your card or bank will apply its own rate.
• Shipping, US import duty and tariffs are not included. For three or four separate UK orders, budget roughly $100–$300 extra.
• Quantities are per engine, taken from the Lotus Esprit V8 service parts list (PDF, sections 40.01b, 40.02d/e, 40.09b, 40.11b and 41.01c). Some of them differ from JAE's 2019 quote, as shown in the next table.
• A dash (—) means the store doesn't list the part online.

Your parts list, with Lotus part numbers and per-engine quantities#

Store 1 — JAE Parts (Goleta, California, USA)#

• Website: jaeparts.com. There are no prices online; every item says "call for price."
• Contact: Jay Makwana, jay@jaeparts.com, +1 (805) 967-5767. Hours are Mon–Thu 7am–3pm and Fri 7am–noon, Pacific time.
• Owners report fast email replies and same-day shipping. Jay said in October 2025 that he wants to retire and is looking for a buyer (LotusTalk thread).
• JAE is the only store here that carries the ARP V8 head stud kit, the engine hose set and the side seals and roll pins from your list.

JAE's 2019 quote (old prices; ask for a new quote):

If the prices for belts, tensioner, idler, main bearings and thrust washers were per piece, the per-engine quantities would add $377.50, for about $5,917 at 2019 prices.

Store 2 — SJ Sportscars (Crediton, Devon, UK)#

• Website: sjsportscars.com. Contact: steve@sjsportscars.com, +44 1363 777790.
• Prices are SJ's "Net Price" (without VAT).

Other SJ options for the same lines:

• Head gasket set, SJ brand: SJ918E0033, £797.56. It saves £97.64, but the page doesn't say whether the head gaskets are original Lotus.
• Genuine Lotus lower gasket set: A918E0317S, £164.97. That's £78.97 more than the SJ-brand set.

Store 3 — PNM Parts (UK)#

• Website: PNM Esprit V8 engine parts. Prices are shown without VAT.
• Several items are marked Pre-Order (made or ordered after you buy), so allow extra lead time.

Cheaper belt option at PNM: Gates timing belt PNME0298 at £57.95 each (£115.90 for the pair, $153.57). That saves £195.78 compared with the genuine belts.

Store 4 — SWLC Performance (UK)#

• Website: shop.swlcperformance.com. There's no UK VAT on orders shipped outside the UK.
• Every SWLC product page below said "Sold out" on October 15, 2026. Email them to ask about back-orders before relying on these prices.

Store 5 — Roose Motorsport (Lincoln, UK): silicone hose kit#

Avoid eBay "Samco" Esprit hose kits. Samco told an owner they don't make an Esprit kit and that those kits are counterfeit (LotusTalk thread).

Store 6 — Westwood Cylinder Liners (UK): liners#

• Ductile iron liners for the 918 V8, part L5188, honed to an 83.00 mm bore. Price on request; use the enquiry form.

Comparison#

Cheapest price for each line across the UK stores#

Add the three items only JAE carries, at their 2019 prices: ARP head studs $600, engine hose set $350, side seals and roll pins $100. That brings the full rebuild to roughly $7,400 before shipping and import duty.

Things to confirm before ordering#

1. Ask JAE for a new quote using the per-engine quantities above. Even if their prices have gone up, one US order may cost less once UK shipping and duty are added.
2. Pistons and liners must be measured and honed as a matched set. The TLF forum recommends checking the piston-to-liner fit and aiming for about 0.003–0.004" skirt clearance (TLF thread).
3. Make sure the pistons' oil-ring drain holes suit the V8's oil jets. One owner had high oil consumption through three rebuilds with aftermarket pistons whose drain holes went through to the inside of the skirt; on the OE piston they drain straight down (TLF thread).
4. Use Hylomar 3400 (A918E0377V) to seal the liners, not "Hylomar Advanced Formula" (A918E6069V). The wrong product is a known cause of coolant getting into the oil (LotusEspritWorld: V8 liner problems).
5. Check the tensioner hub size before buying tensioner bearings. C918E6066F needs a 30 mm hub; some engines have a 35 mm hub that must be machined down (TLF thread).
6. Ask JAE what "side seals and roll pins" covers. It doesn't match any item in the Lotus V8 parts list.

Cooling System#

Decision: Pro Alloy Cooling Rad/Fan Package + Pro Alloy Twin Charge Cooler. Risk: pre order with many delays#

Upgraded Aluminum Radiators

• Wizard Cooling Radiator & Fan Package: A complete kit including the aluminum radiator and integrated 11-inch fans providing 2400 total CFM ($1,349 on October 15, 2026).
• Lotus Esprit Radiator - goes with charge cooler kit

Oil Cooling & Performance Additions

Engine oil contributes significantly to cooling the 918 V8, making upgraded oil coolers a priority for longevity.

• PNM Parts Oil Cooler: A replacement oil cooler option for Esprit models; ensuring the center length between unions matches your specific V8 setup is crucial. £74.95 without VAT on October 15, 2026; pre-order.
• Pro Alloy Twin-Charge Cooler Kit: For highly modified V8s, this kit reduces intake temperatures to maintain power stability (£3,995 on October 15, 2026; see the parts list below).
  • Estimated labor time for a professional mechanic is typically 15 to 25 hours
• Universal ISR Performance Oil Cooler Core: A 16-row core that can be used to build a custom high-capacity oil cooling solution ($159.50 on October 15, 2026)

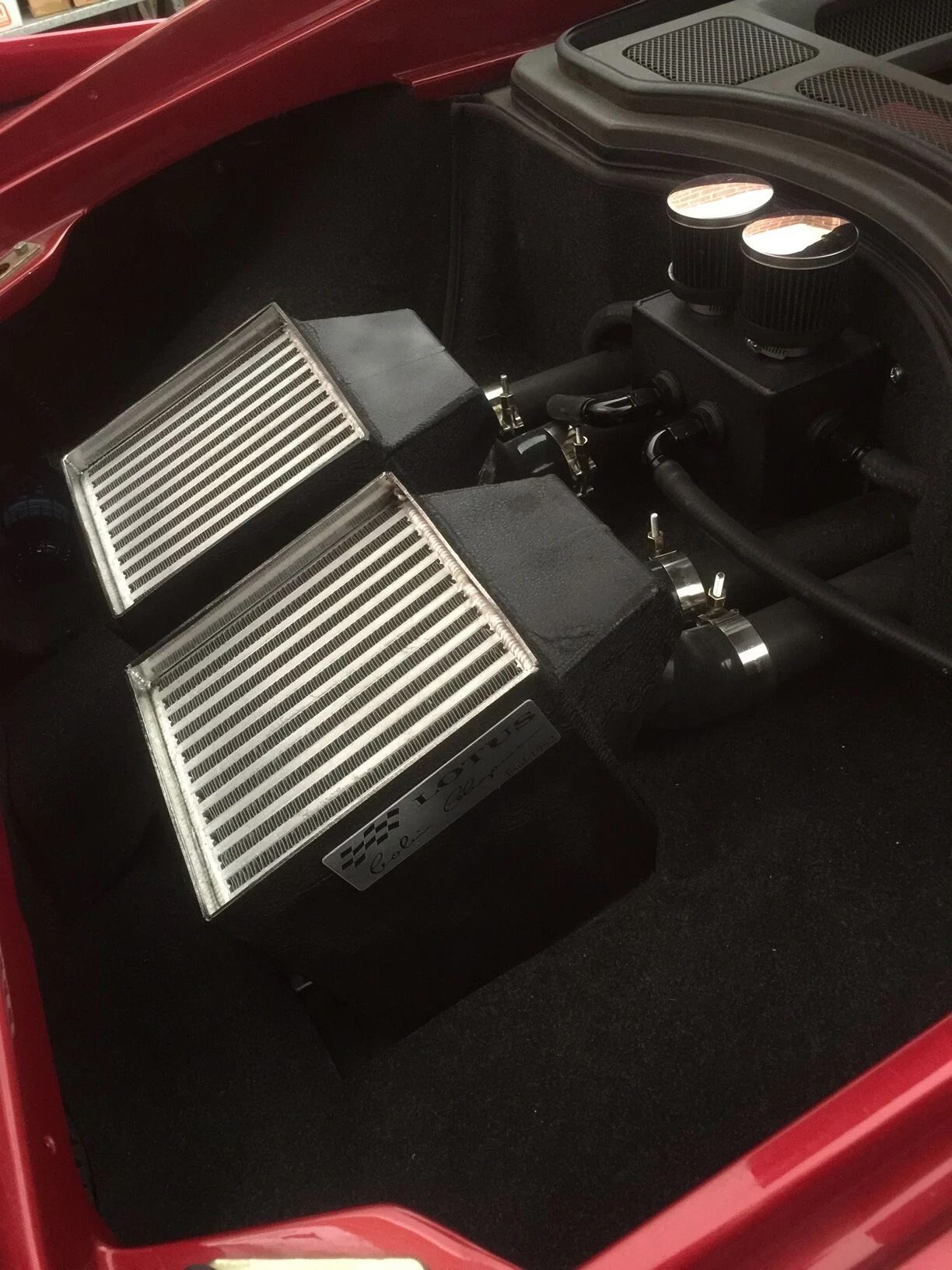

Pro Alloy twin charge cooler#

The Esprit V8 has no intercooling from the factory: each turbo feeds the plenum directly, and hot intake air makes the ECU add fuel and pull timing. The Pro Alloy kit adds two water-to-air charge coolers in the boost pipes behind the rear bulkhead. A separate water circuit with an electric pump carries the heat to a pre-radiator at the front of the car. The kit was developed from nick_wannop's prototype car with help from The Lotus Forums.

What's in the kit#

From the Pro Alloy product page:

• Two high-flow charge cooler cores (165 × 95 mm, 20 fins per inch)
• Engine coolant tank that replaces the OEM tank, with a flange for the original level sensor
• Charge cooler header tank (reservoir)
• Mounting brackets, hard lines, silicone hoses and joiners, clips and bolts
• Cold-side boost pipes (51 mm) from the charge coolers to the plenum
• Billet bosses for two blow-off valves
• Satin black finish; every part is pressure-tested

Not included: the hot-side boost pipes (your original pipes must be modified by a professional), the pre-radiator and its lines, the water pump, and the blow-off valves. The 2020 group-buy kit included the pump, pre-rad, valves and pipe work, so ask Pro Alloy what is in the box today before ordering.

Parts to buy#

Prices checked on October 15, 2026. Pro Alloy prices include 20% UK VAT, which is normally removed on orders shipped to the US (confirm at checkout). Dollar figures use the export price at £1 = $1.325.

📝 Not included: shipping from the UK, US import duty, hot-side pipe and line quotes, labor (15–25 hours), and any ECU calibration. The Marcus chip is in the ECU section; Mike Sekinger also offers a 1 bar calibration made for charge-cooled cars (price on request, see the group-buy thread).

Testimonials and owner reports#

No reviews from buyers of the production kit were found. These threads are from the prototype owner, the group buy, and other owners who looked at charge cooling.

• V8 INTERCOOLING PROJECT (The Lotus Forums): the prototype that became the Pro Alloy kit.
  • nick_wannop, who owns the car: charge cooling protects against detonation, stops the ECU pulling ignition or cutting boost, and gives more power at every ambient temperature. His stock turbos hold 15 psi even on hot days. The kit keeps full boot (trunk) space and the pipe runs are short. He kept his A/C radiators.
  • mike_sekinger: the stock ECU dumps fuel on hot days, so charge cooling gives dependable power and less heat in the oil.
  • Vanya worried that more power would mean gearbox and engine upgrades. gmendoza asked whether US cars with air injection and EGR have room for it; that was not answered.
• Pro Alloy V8 intercooler kits group buy (The Lotus Forums, 2020): the group-buy kit with pump, pre-rad, blow-off valves and pipe work ran from £3,421.76 + VAT for one kit to £2,395.23 + VAT each for ten. Buyers reported long gaps with no news from Pro Alloy, and Pro Alloy had to reverse-engineer Nick's car. Mike Sekinger offered a charge-cooler 1 bar calibration (450–470 bhp) and spare inlet pipe sets. One member questioned the single-pass pre-rad.
• V8 INTERCOOLING (The Lotus Forums, 2022): Mike Sekinger compares the options, including water/methanol injection.
• Esprit V8 intercooling - creative concepts (LotusTalk): owners discuss layouts; one other kit performed poorly.
• another chargecooler question (The Lotus Forums): a V8 without charge cooling sees intake temperatures around 215°F.
• Intercooler Project Finally Finished (The Lotus Forums): a home-built system that got intake temperatures below ambient.
• Chargecooler efficiency project (The Lotus Forums): heat soak in water-to-air systems.
• Water/air vs air/air intercooling (Motorsport Developments): general trade-offs of water-to-air systems.

Pros#

• Lower intake temperatures, so the ECU stops adding fuel and pulling timing; power stays steady on hot days.
• Less heat in the pistons and oil, and more margin against detonation.
• Fits behind the rear bulkhead, keeps full trunk space, and the pipe runs stay short, so little extra lag.
• Room for more boost later: the prototype holds 15 psi on stock turbos, and the Sekinger calibration targets 450–470 bhp.
• Built by the company that made the prototype parts; everything is pressure-tested.
• Works with the stock ECU at stock boost; no tune is needed to get the benefit.

Cons#

• Expensive: about $5,900 for the charge cooler parts alone, plus Pro Alloy's radiator, which the pre-rad requires.
• The kit is incomplete: hot-side pipes need professional modification, and the pump, pre-rad and blow-off valves are bought separately.
• Pre-order with long delays, and Pro Alloy has gone quiet for long stretches before.
• No published before/after data and no reviews from buyers of the production kit.
• US cars may lack room around the air injection and EGR hardware. Check your state's emissions rules; California needs a CARB Executive Order for intake changes.
• Adds weight, plumbing and a pump that can fail or leak without obvious symptoms; heat soak after stopping or at idle.
• The A/C condenser may need replacing to fit the pre-rad.

Installation guide#

⚠️ Pro Alloy doesn't publish Esprit fitting instructions online. This outline is compiled from the kit contents, the SELOC guide to fitting Pro Alloy's Exige charge cooler, Lotus Esprit World's electric charge cooler pump wiring, and line routing advice on The Lotus Forums. Follow Pro Alloy's instructions where they differ. A professional mechanic needs about 15–25 hours.

Before you start

1. Ask Pro Alloy what the kit includes, which pump and blow-off valves they recommend, and how they handle the hot-side pipe modification.
2. Decide whether to send your original hot-side pipes away (the car is off the road meanwhile) or buy a spare set to modify first.
3. If the A/C condenser is changing, book a licensed A/C shop to recover the refrigerant. In the US, refrigerant must be recovered by an EPA Section 609 certified technician.
4. Get an OBD-II logger or scan tool that shows intake air temperature, so you can compare before and after.

Steps

1. Baseline. Log intake air temperature, ambient temperature and coolant temperature on a drive before you start.
2. Prepare. With the engine cold, disconnect the battery and drain the engine coolant.
3. Remove. Take off the engine cover and the panels behind the rear bulkhead. Remove the boost pipes from both turbos to the plenum. Label every vacuum and breather line.
4. Engine coolant tank. Replace the OEM tank with the Pro Alloy tank and move the level sensor to its flange.
5. Charge coolers. Fit the brackets and both cores behind the rear bulkhead. Mount the charge cooler header tank at the highest point of the water circuit.
6. Boost path. Connect each side: turbo, modified hot-side pipe, charge cooler, cold-side pipe, plenum. Use the supplied silicone joiners and clips.
7. Blow-off valves. Fit both valves to the billet bosses, plumb them back to the turbo inlets, and connect their vacuum references to the plenum.
8. Front end. Fit the Pro Alloy radiator and fans, the pre-rad in front of it, and the condenser if needed.
9. Water lines. Run the 19 mm lines front to rear along the chassis, away from the exhaust and the engine coolant pipes. Protect them with sleeving and clip them about every 30 cm (12 in).
10. Pump. Mount the pump low and below the header tank so it is always flooded. Flow runs from the tank to the pump, then the pre-rad, then the charge coolers, then back to the tank. Feed water into each core on the side where the air leaves, so the water flows against the air.
11. Wiring. Wire the pump through a relay with a 10 A fused feed from the battery. Switch the relay from the fuel pump relay feed so the pump runs whenever the engine runs. Add a temporary switch to run the pump with the engine off for bleeding.
12. Fill and bleed. Refill and bleed the engine cooling system using the Lotus procedure. Fill the charge cooler circuit with distilled water and coolant, run the pump with the engine off, and bleed air from the top of the header tank until no bubbles appear.
13. Leak test. Pressure-test the boost side with a boost leak tester and check every clip. Check the water circuit for drips with the pump running.
14. Road test. Repeat the baseline drive and compare intake air temperature to ambient. Check coolant temperature and fan operation.
15. Follow-up. Re-tighten the clips after a few heat cycles, and recheck both coolant levels after 50 and 500 miles.

Heating#

Decision: it’s broken, fix#

The heater blows cold air. This is one of the most common Esprit V8 faults, and the cause is usually a cheap part, not the heater matrix. Lotus Engineering had the same problem on its own 2002 V8: the matrix and the water valve tested fine, and the cause was a diverter valve that stuck and didn't switch fully (Lotus Esprit World).

How the heater works#

Hot coolant leaves the back of the cylinder heads and turbos and runs forward along the left chassis rail, through the electric recirculation pump, to the diverter valve under the front of the car. With the engine running, engine vacuum holds the diverter in the heater position; a solenoid valve behind the left rear quarter trim switches that vacuum. The coolant then passes the electric water valve, which the heater control module opens and closes to set the temperature, flows through the heater matrix behind the dashboard, and returns to the engine.

With the engine off, the vacuum vents and the diverter switches the other way. If the coolant is above 105°C, the ECU runs the recirculation pump and the fans for up to 20 minutes, pushing coolant backwards to the radiator bottom hose to cool the turbos (service notes, The Lotus Forums).

So anything that stops vacuum reaching the diverter, or stops the diverter moving, leaves the heater in its engine-off state: the coolant bypasses the matrix and the air stays cold.

What's likely broken#

Most common first; the numbers match the diagram.

1. Vacuum leak. The thin plastic vacuum pipes pop off their rubber elbows, and the elbows split with age. Without vacuum the diverter never switches to the heater. This is the cheapest fix and the one owners report most often.
2. Diverter valve stuck. Rust and scale jam the valve. It can hold vacuum, and you may hear it click, yet still not pass coolant: one owner found rusty water trapped inside when he pulled the hose (The Lotus Forums).
3. Diverter solenoid valve. It should pass vacuum with the engine running and vent with it stopped. A failed solenoid, or no 12 V at its connector, has the same effect as a leak.
4. Heater matrix blocked or air-locked. If the hose into the matrix is hot and the hose out is cold, the matrix is blocked; try a low-pressure back-flush before replacing it. The matrix is one of the highest points in the system, so it also traps air after coolant work.
5. Electric water valve. The heater control module drives it toward hot (pin 8) or cold (pin 7) and reads its position on pin 5. It is rarely the cause, but check it before taking the dashboard apart.
6. Mode flap stuck in the A/C position. In the A/C setting (single blue arrow), a vacuum-operated flap opens the center vents and shuts the heat off. If that flap or its solenoid sticks, the air stays cold even with a hot matrix. The heater flap stepper motor only splits the air between windshield and footwell, so it doesn't cause cold air, but its resistors are known to burn out.

Diagnose first#

Do these checks in order before buying anything bigger than vacuum pipe.

1. Warm the engine fully and set the temperature to full hot. With the front of the car on axle stands, feel both heater hoses where they leave the front of the chassis. If both are hot, coolant reaches the matrix: go to step 6. If both are cold or lukewarm, the diverter isn't sending coolant to the heater.
2. At the diverter valve under the front crossmember, pull the vacuum pipe off the capsule. There should be vacuum with the engine running, and the line should vent with the engine stopped (service notes). If there's no vacuum, work back along the pipe to the solenoid and the plenum, checking every elbow.
3. Apply vacuum to the diverter capsule with a hand vacuum pump. It should hold vacuum and the valve should move. If it holds but the hoses stay cold, the valve is jammed inside.
4. Check that the capsule is on the right-hand side of the valve. If it's on the left, the valve is fitted the pre-1996 way round; the Lotus fix is to turn it 180° and swap the hoses to the opposite ends (service notes).
5. At the solenoid on the LH fuel tank board, behind the LH rear quarter trim, check for 12 V with the ignition on and confirm that it passes vacuum.
6. If coolant reaches the matrix but the air is still cold, feel the hoses on both sides of the electric water valve and check the module pins listed above. With the engine running, check that the mode flap moves when you turn the distribution knob away from the A/C setting.
7. If the matrix inlet is hot and the outlet cold, back-flush the matrix at low pressure and bleed the system (The Lotus Forums).

⚠️ One owner bypassed the diverter valve with a three-way joiner and got full heat back. That also disables the after-run cooling of the turbos, so it isn't recommended for this car.

Parts to buy#

Prices checked on October 15, 2026. UK prices are shown without VAT (the export price), because 20% UK VAT is normally removed on orders shipped to the US. Dollar figures use £1 = $1.325. Part numbers are from the Lotus service parts list.

Likely fix: vacuum supply and diverter valve

If the checks point further

📝 Not included: shipping from the UK, US import duty and labor. The vacuum and diverter work is done from under the front of the car and behind the left rear quarter trim. Replacing the matrix means removing the dashboard, which Lotus Esprit World calls about the worst job on an Esprit, so get a quote before agreeing to it.

Sources#

• Heater fault Esprit V8, no warm air entering the car interior (The Lotus Forums)
• Operation of heater (The Lotus Forums): the stuck diverter valve full of rusty water, and the stepper motor resistors.
• Esprit Heater (The Lotus Forums)
• No hot air from heater matrix (The Lotus Forums): where the diverter valve, solenoid and pump are.
• Coolant Recirc system (The Lotus Forums)
• Method for back flushing S4 heater (The Lotus Forums)
• Heater Control Module for GT3, supplier? (The Lotus Forums): vacuum lines as the usual culprit, and PNM refurbishing stepper motors.
• Heat problems on V8 (PistonHeads)
• A/C air distribution flaps (LotusTalk): the vacuum mode flap and the stepper motor.
• Is your V8 cold inside? (Lotus Esprit World): Lotus Engineering's diverter valve finding.
• Esprit service notes, cooling system: diverter valve logic and vacuum check.
• Esprit V8 service parts list: part numbers.

AC#

Decision: look at replacing with modern compressor#

The A/C is weak. Recharging alone rarely fixes this for long, because the refrigerant that was lost usually leaked out and will leak out again. Find the leak and check the condensers first, then replace the compressor. The V8's compressor is a GM V5 (Delphi 1135153), the same unit as a 1994–98 Buick Skylark 3.1, and a new one costs $155–$300 in the US. A new V5 is the modern replacement; no bolt-on alternative exists for this car.

How the A/C works#

The compressor on the engine pumps hot, high-pressure refrigerant gas through long pipes to two condensers at the front of the car, in front of the radiator. The three radiator fans pull air through them, and the gas cools into a liquid. The liquid passes through the receiver-drier, which traps moisture and carries the pressure switch, then reaches the expansion valve on the evaporator behind the dashboard. The evaporator chills the cabin air, and the cold, low-pressure gas returns to the compressor. The system holds 1.2 kg (2.6 lb) of R134a (The Lotus Forums).

A thermistor control unit switches the compressor clutch on and off to hold the temperature you set, and a low-pressure switch on the receiver-drier stops the compressor when the charge is too low. The engine ECU raises the idle speed when the A/C is on, and switches the A/C off at wide-open throttle. The fans run whenever the compressor runs at low road speed (Lotus service manual, service notes).

So weak A/C means one of four things: too little refrigerant, heat not leaving at the front, a compressor that isn't pumping, or heat being added back in the cabin.

What's likely broken#

Most common first; the numbers match the diagram.

1. Low charge from slow leaks. The pipes run the length of the car and have many joints. The usual leak points are the O-rings at each joint, the two sealing washers on the back of the compressor, the pressure switch and the hoses. The compressor washers can hold a vacuum yet leak under pressure (The Lotus Forums, Lotus Esprit World). Below about 500–600 g, the low-pressure switch stops the compressor completely.
2. Condensers clogged or corroded. They sit in a stack with the radiator, and debris collects between them; Lotus specifies cleaning the radiator fins at every A and B service (Lotus Esprit World). Look through the front bumper: if the condensers look saggy and furry, they need replacing (The Lotus Forums). The typical sign is A/C that works on the highway but goes warm in traffic.
3. Fans not running with the A/C. At low speed the fans are the only air through the condensers. If they don't come on with the compressor, the pressure climbs and cooling fades at idle.
4. Hot coolant through the heater matrix. The evaporator and heater matrix share one box behind the dashboard. If the electric water valve doesn't shut fully, hot coolant reheats the air the evaporator just cooled. The heater currently gets no hot coolant (see Heating), so this may only show up once the heater is fixed.
5. Compressor. The V5 changes its output with a control valve in its rear head. A failing control valve or a worn compressor gives air that is only cool, worse at idle, with the low-side pressure stuck high at 45–80 psi (Aircondition.com).
6. Receiver-drier or expansion valve. The drier absorbs moisture until it is saturated; after that, moisture and oil form acid and sludge that block the expansion valve. Replace the drier whenever the system is opened.

Diagnose first#

Do the first four checks yourself; the rest need an A/C shop with a recovery machine and gauges.

1. Put a thermometer in the center vent. Set max cold, recirculation and the highest fan speed, close the doors, and hold the engine at about 1,500 rpm. A healthy R134a Esprit gets the vent to about 40°F (4–5°C) (The Lotus Forums). Note whether it gets worse at idle.
2. With the A/C on and the car standing still, check that the compressor clutch engages and that all three radiator fans run.
3. Look at the condensers through the front bumper. Wash debris out from between the condensers and radiator with low-pressure water from behind; the fins bend easily.
4. After a drive, set the temperature to full cold and feel both heater hoses. If they are hot, the water valve isn't shutting.
5. Have the shop recover the refrigerant and weigh it against the 1.2 kg (2.6 lb) specification. Much less means a leak.
6. Have the shop pull a vacuum for at least 30 minutes and check that it holds, then find leaks under pressure with UV dye or an electronic leak detector. A vacuum test alone can miss the compressor seals.
7. Recharge by weight and read the gauges:

⚠️ Venting refrigerant is illegal in the US, and recovering it needs an EPA Section 609 certified technician. Avoid DIY cans with stop-leak: the sealant can clog the expansion valve, and many shops won't connect their equipment to a system that contains it.

Choosing the compressor#

The original compressor is a GM V5 (Lotus A082P4389F, "type 1135153"), not a Sanden. The Sanden SD7H15 that often comes up on forums is the four-cylinder GT3's compressor (Lotus A082P6064F) (Lotus service parts list, The Lotus Forums).

• New GM V5 (recommended). Bolts straight in with the original hoses and wiring. Sold new for the 1994–98 GM 3.1 V6 and listed for the Esprit V8.
• Sanden conversion. Needs custom brackets and hose fittings; no kit for the Esprit V8 was found.
• Electric compressor. Draws about 40–71 A, so it needs a high-output alternator, new wiring and custom mounting (Hagerty).

When the compressor is replaced, the shop should flush the pipes and condensers, because debris left in the system quickly kills a new compressor (Sanden service guide). They should also fit a new receiver-drier, expansion valve and seals, lubricate the O-rings with PAG oil, and set the oil charge. Lotus adds 1 oz for the drier, 1 oz for the condenser, 3 oz for the evaporator and 2 oz for the compressor (LotusTalk). Then evacuate for at least 30 minutes and charge 1.2 kg (2.6 lb) of R134a by weight; too much can damage the compressor.

Parts to buy#

Prices checked on October 15, 2026. UK prices are shown without VAT (the export price). Dollar figures use £1 = $1.325.

Planned: new compressor and service parts

If the checks point further

Replace only the hoses or pipes the leak test finds. Prices at SJ Sportscars, without VAT:

• Hose, condenser to receiver-drier (A082P4382F): £100.99 ($133.81)
• Hose, receiver-drier to expansion valve (A082P4381F): £65.00 ($86.13); marked obsolete, so check stock
• Hose, compressor manifold to condensers (A082P4387F): £309.17 ($409.65)
• Flexible hose, compressor manifold to transfer pipe (A082P4385F): £91.85 ($121.70)
• Pipe, expansion valve to compressor (A082P4386F): £256.21 ($339.48)

📝 Not included: the A/C shop's recovery, flush, leak test, evacuation and recharge; labor; shipping from the UK; and import duty. The Price Estimate allows 6–12 hours.

Sources#

• Aircon fix (The Lotus Forums): leaking compressor seals and corroded condensers.
• Esprit V8 Air Con Capacity (The Lotus Forums): 1.2 kg charge, drier replacement, low-pressure cut-out.
• A/C Compressor Manufacturer (The Lotus Forums): the Delphi 1135153 cross-reference.
• Air Con Compressor (The Lotus Forums): replacement compressor discussion.
• Air Conditioning a Giugiaro (The Lotus Forums): vent temperatures on R134a.
• A/C system X-ref parts (LotusTalk): refrigerant and oil quantities from the service manual.
• Esprit AC Charging and Radiator Debris (Lotus Esprit World)
• Lotus service manual and service notes: A/C controls and fan operation.
• Esprit V8 service parts list: part numbers.
• V5 air conditioning diagnostics (GM) and faulty refrigerant control valves (Aircondition.com)
• SD compressor service guide (Sanden): replacing a compressor in a clean system.
• The electric compressor (Hagerty)

Interior#

Decision: redo leather and seats. Stereo with android auto.#

• Redo leather
• Stereo with Android Auto

Turbos#

Decision: Rebuild Turbos#

💡 Big turbos don't make sense without engine, fuel and gearbox upgrades. With the Pro Alloy charge cooler planned (see Cooling System), a rebuild with a 360° thrust bearing, or a mild Stage 1 hybrid, is the sensible level.

The V8 has two Garrett T25 turbos, one per bank: Garrett TB2531, part number 452218-0001 (Lotus A918E0060F). Garrett no longer makes them, so the originals get rebuilt; the housings are the scarce part. Rebuild both as a pair, since they have lived the same life in the same hot engine bay. A rebuild can add a 360° thrust bearing for reliability. A hybrid adds a larger billet compressor wheel in the original housings for a little more flow. Bigger upgrades such as the Garrett GT28RS or GT25R need new manifolds, relocated turbos and external boost control (The Lotus Forums, Project M71).

ATS Racing no longer sells its Esprit billet turbo: the old product page is gone, and its new store doesn't list it.

Rebuild and upgrade options#

Prices checked on October 15, 2026. UK and EU prices are shown without VAT, which is normally removed on orders shipped to the US. Dollar figures use £1 = $1.325 and €1 = $1.1208 (ECB rate on October 15, 2026).

The Turbo Pascher units are exchange turbos, so you don't get your original housings back; ask about shipping to the US before ordering. The rebuild services keep your original housings.

Parts to replace while the turbos are off#

Many rebuild warranties require new oil feed lines, and sometimes new water lines (The Lotus Forums). Prices exclude VAT.

If the coolant hoses are in good condition, you can replace just the two oil feed pipes (PNMJ9188, £54.95 each, $145.62 for the pair). The Roose silicone hose kit in the Engine section may overlap with the coolant hoses in item 1, so check before ordering both.

Keeping the rebuilt turbos healthy#

• Heat soak after a hot shutdown cooks the oil in the bearings. After hard driving, let the engine idle for a short while before switching off.
• The electric recirculation pump cools the turbos after shutdown. Check that it runs after a hot drive; it is covered in the Heating section.
• Prime the turbos with oil before the first start, and check for leaks at every oil and water joint.

📄 Lotus Esprit Turbo Upgrade Options

ECU#

Decision: Marcus Red Race Chip#

The V8's ECU has GM electronics but Lotus software. The fuel, boost and timing maps sit on two EPROM chips, so a tuner can solder in sockets and swap chips instead of reprogramming the ECU (The Lotus Forums). Every Lotus map limits boost to about 0.75 bar, and the stock maps also cut boost in the lower gears to protect the gearbox. This car is a 2000 V8, so it has the post-1998 ECU that takes chips directly; earlier ECUs need an extra resistor soldered in (The Lotus Forums).

US cars may not have Lotus's High Torque map, which European cars got from the 1999 model year. Marcus says US cars from 2000 on still didn't get it; an owner on PistonHeads thought 2000 cars did (Marcus Esprit World, PistonHeads). Ask Marcus or Esprit Engineering to identify the map in your ECU before you buy chip #0.

Options that keep the stock ECU#

Prices checked on October 15, 2026. Dollar figures use €1 = $1.1208 and £1 = $1.325. Marcus lists his prices in euros and adds €9.60 ($10.76) for shipping; ask him whether German VAT comes off for a US order. DIY means you get two chips and two sockets to solder into your ECU; fitted means you post your ECU to Germany and Marcus sends it back with the chips installed.

US owners who buy a DIY kit can have the sockets fitted by Circuit Rework, which Marcus recommends. That keeps the ECU in the country. The ECU sits behind the right-hand fuel tank cover.

Standalone ECUs#

A standalone ECU replaces the Lotus ECU completely. It only makes sense if the engine build goes beyond what the chips allow, such as bigger turbos, larger injectors or more than about 450 hp, because a chip can't be retuned. One owner fitted a Link ECU to his V8 in about 10 hours; he said "the work is really in the mapping" (The Lotus Forums). Pick the ECU your tuner knows best.

⚠️ Prices are for the ECU alone. Add a harness or adapter, a wideband oxygen sensor, installation (about 10 hours) and dyno tuning. A standalone isn't emissions-certified, so the car can fail an OBD-II inspection in states that test. It also loses the Lotus diagnostics, and the tuner has to recreate the A/C and turbo-cooling pump logic.

Which to choose#

1. With the stock gearbox: chip #0 or #1, if your ECU doesn't already have the High Torque map. This is the low-risk gain.
2. After the gearbox kit (see Transmission) and the charge cooler: the Red Race chip, as decided. Keep boost at its 0.9 bar limit and fit a freer exhaust with high-flow cats.
3. If JAE builds the engine past what the chips support: a standalone ECU tuned on a dyno, or ask Mike Sekinger about a calibration on the stock ECU.

Before fitting any chip, check the basics so the extra boost doesn't find a weak spot: spark plugs, ignition coils, fuel pump and filter, wastegates and boost hoses. Fit a boost gauge. After fitting, let the engine idle with the A/C on so the ECU relearns its idle settings (review).

Sources#

• V8 chips and ECUs and Red Race ECU review (Marcus Esprit World)
• Review: Esprit ECU Performance Chips (Lotus Esprit World): supporting mods for the race chip.
• ECU Chip Upgrade (The Lotus Forums): Red Race on a 1997 car, and the resistor needed before 1998.
• V8 ECU Upgrades - worth it? (The Lotus Forums): Sport 350 code, rev limit, and engine risks.
• new ECM options? (The Lotus Forums): how the ECU stores its maps, and boost limits.
• 1998 ECU Conversion to Megasquirt/Haltech (The Lotus Forums): a Link standalone on an Esprit V8.
• V8 ECU optimisation and dyno figures (Mike Sekinger's blog)
• High torque (euro) software chip for US 98+ TT V8? (PistonHeads): Lotus High Torque and Race ECM part numbers.
• ECU repairs and V8 reprogramming (Esprit Engineering)

Transmission#

Decision: Upgrade kit - either one.#

The V8 uses a Renault UN1-027 five-speed transaxle, rated at 400 Nm (295 lb-ft). That is exactly what the stock engine makes, and the Red Race chip in the ECU section raises it to about 370 lb-ft (LotusTalk). A Lotus engineer who worked on the V8 told one owner the gearbox was known to be too weak for the engine (The Lotus Forums).

The known failures are:

• Input shaft breaking at the 5th gear end. The stock input shaft is in two pieces, and 5th gear hangs off its end. The shaft cracks from fatigue where it steps down in diameter. When it breaks, the loose 5th gears machine the inside of the end cover, so a failure can add more than £1,000 of parts to the repair (Lotus Esprit World).
• 2nd gear and its synchro. This car already had 2nd gear and all synchro rings replaced in 2013 (invoice below).
• Wheelspin with the open differential. A limited-slip differential (LSD) puts the power down out of slow corners.

Every upgrade kit fits inside the original casing. The fix is a stronger one-piece input shaft with new 1st and 2nd gears, usually with a Quaife ATB limited-slip differential. The one-piece shaft was first designed by Derek Bell (not the racing driver) for Lola replicas, and Holloway and Quaife copied his design (GT40s). One owner says the GTO kit with the Quaife ATB is fine up to about 450 hp (The Lotus Forums).

Gear ratios#

Taller 1st and 2nd gears close the gap to 3rd and spread the torque over more road speed, so the wheels spin less. The Quaife 1st gear is much taller than stock, so pulling away from a standstill takes more clutch (Quaife, Elite Racing Transmissions, LotusTalk).

Upgrade options#

Prices checked on October 15, 2026. Every kit maker now quotes on request, so the prices below are the last ones owners reported, with dates. Dollar figures use £1 = $1.325 and €1 = $1.1208 (ECB rate on October 15, 2026). Max torque is what each gearbox is rated or reported to take; the stock engine makes 295 lb-ft and the Red Race chip about 370 lb-ft.

Limited-slip differential#

The Quaife ATB (QDF5M) is a helical-gear limited-slip differential that bolts in instead of the open differential. It has no clutch plates to wear out. Fit it at the same time as the gear kit, because the gearbox has to come apart for either job.

📝 Fit new differential bearings and ring gear bolts with the ATB: the old bearings rarely survive removal, and the bolts are single-use (WC Engineering).

Who can fit it#

• Esprit Engineering (UK) rebuilds V8 gearboxes in-house and fits LSDs and Quaife gear sets. They ship worldwide.
• WC Engineering (USA) rebuilds Esprit UN1 gearboxes with a 12-month, 12,000-mile warranty and installs Quaife LSDs. Its site lists only the 4-cylinder cars, so confirm they take the V8 box.
• GTO Racing helps owners who build the kit themselves.

The 2013 repair took 8 hours to remove and refit the gearbox and about 5.5 hours to rebuild it. Fitting a kit and an LSD at the same time is similar work. The clutch and flywheel were replaced in 2013, so check their wear while the gearbox is out instead of replacing them by default.

Which to choose#

Get the GTO Racing / Quaife kit with the Quaife ATB, and fit them before the Red Race chip (see ECU). Ask GTO Racing for a quote for both parts together, and ask Esprit Engineering for a quote to fit them, as a fallback if GTO is slow to reply. If you'd rather keep near-stock ratios, ask Elite Racing Transmissions whether its kit is quiet enough for the road and fits the V8 input shaft.

Sources#

• Uprated Renault Gearbox and Esprit 'Renault' Gearbox Testing (Lotus Esprit World): shaft failures and gearbox versions.
• How to tell what UN1 Renault transmission I have? (LotusTalk): ratios and torque ratings.
• 4 sale: UN1 Transmission Upgrade EMCO Kit and Quaife ATB QDF5M (LotusTalk)
• V8 Gearbox options? and V8 gearbox (The Lotus Forums): owner experience with GTO and its availability in 2025.
• UN1 Gearbox Upgrade Kit (The Lotus Forums): 2013 GTO kit price.
• UN1 Query and How strong is the Renault UN1 with single piece shaft (GT40s): torque ratings for stock and one-piece shaft UN1s, and Derek Bell's original shaft.
• Gearbox and clutch (Project M71): GTO's six-speed, no longer available.
• Renault UN1 Ratios and UN1 gear kit drawing (Elite Racing Transmissions)

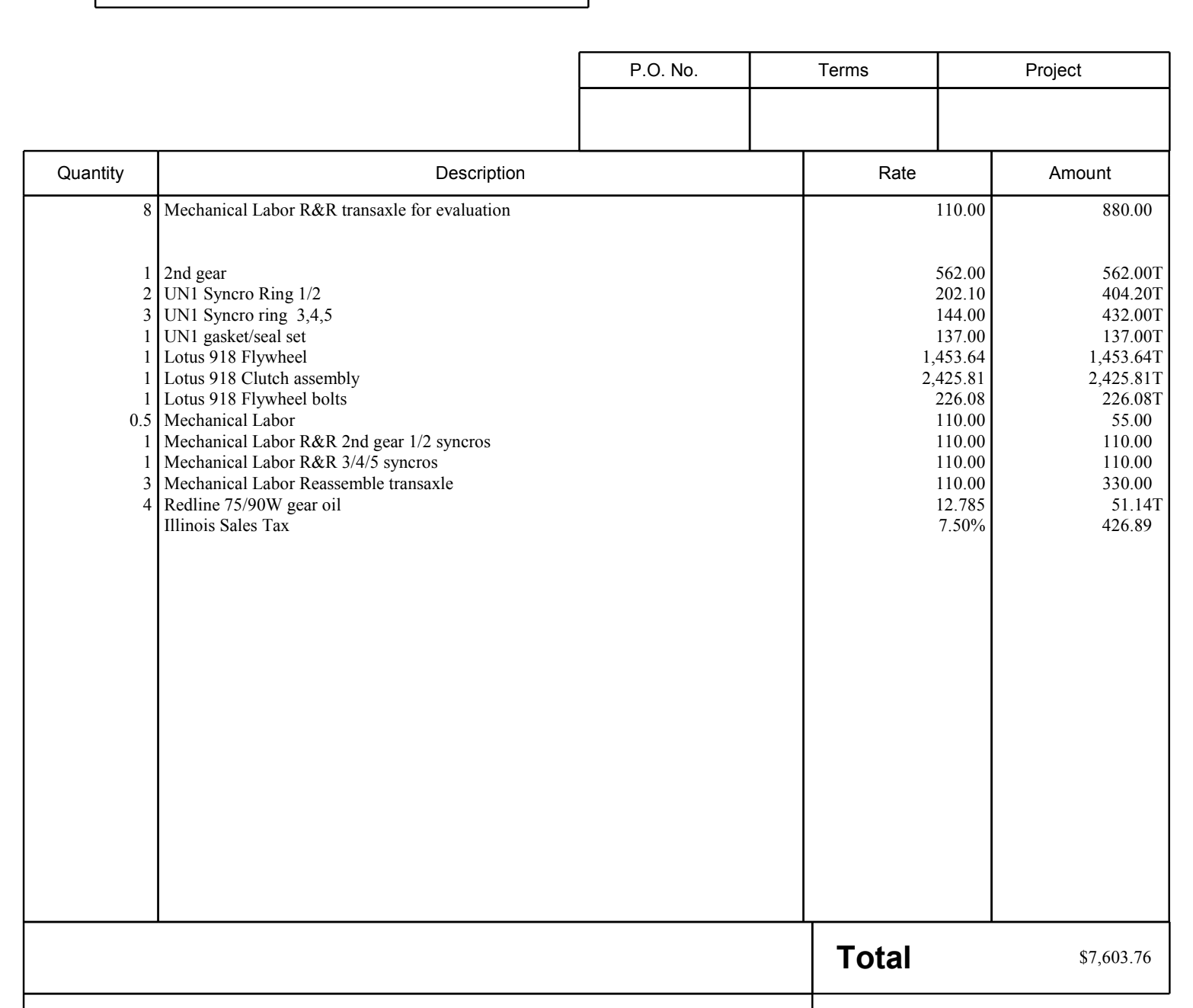

Last Transmission Repair 2013#

Wheels#

Decision: fix existing wheels#

Size

• Front (17x8.5): ~22.8 lbs (10.3 kg)
• Rear (18x10): ~26.2 lbs (11.9 kg)

Since the Esprit uses a specific 5x108 bolt pattern and low offsets, you typically need custom-built forged wheels.

Aftermarket#

1. LOTUS Forged Wheels – Custom Designs & Fitment

Splux wheel previews#

All 17 wheels in the Splux Lotus collection on the yellow car. Click a photo to enlarge it, then use the arrow buttons or arrow keys to browse.

🖼️ These are AI-generated previews made from Splux's product photos and the yellow Esprit image in the Color section, so details may differ from the real wheels. Each wheel is shown in one finish; Splux offers over 100. Prices are Splux's starting price per wheel on October 15, 2026, before size options, shipping and tax. Wheels are built to order: confirm the 5x108 bolt pattern, offsets and the 17x8.5 front / 18x10 rear sizes with Splux.

Tires#

The 2000 V8 left the factory on 235/40ZR17 front and 285/35ZR18 rear tires, Dunlop SP Sport 9000s, on 8.5x17 and 10x18 OZ wheels (Longstone Tyres, Lotus Esprit World). The rear size is easy to buy. The front size is not: on October 15, 2026, Tire Rack listed 11 tires in 235/40R17, none of them a Michelin, Continental or Bridgestone, and none sold in 285/35R18 as well. Many owners now fit 245/40R17 fronts instead, a size with 56 tires on Tire Rack (The Lotus Forums).

Replace tires that are more than about 6 years old even if the tread looks fine. One owner warns that old, hard fronts with fresh rears make the car understeer (The Lotus Forums). The date code is the last four digits of the DOT number on the sidewall (week and year).

Choosing the front size#

A 245/40R17 is 10 mm wider and 8 mm taller (1.3%) than the factory front. In 2025 an S4s owner, whose car uses the same front size as the V8, fitted 245/40R17 Bridgestone Potenza Sports. The wider tires touched the inner wing at full lock, so he fitted steering rack lock stops made to the drawing for the Sport 300, which ran 245-wide fronts. After that there was no rubbing on the lift or on rough roads, and he concluded a 245 fits an S4s or V8 with the stops (The Lotus Forums). An Australian V8 owner who fitted 245 Michelin fronts felt a slight rub at full lock when parking (Aussie Exotics). The stops sit inside the rack boots. The S4s owner had his made and had to machine 0.5 mm off to fit them, so ask your shop or an Esprit specialist for a pair.

💡 The V8's certified top speed is 175 mph (Lotus Esprit World). Y-rated tires (186 mph) cover it; W-rated tires (168 mph) don't, which only matters if you drive near top speed. The ratings are listed with each tire below.

Tire options#

Prices checked on October 15, 2026, per tire, at Tire Rack with free shipping unless noted. A set is two fronts and two rears, before mounting, balancing and sales tax. All rear tires are 285/35R18.

The Continental ExtremeContact Sport 02 from the old table is no longer listed in 285/35R18 at Tire Rack or SimpleTire. Tire Rack lists no winter tires in 285/35R18, so the all-season sets are the cold-weather choice.

⚠️ Summer tires lose most of their grip below 40°F (5°C), and can crack if they are flexed or driven when colder than 20°F (-7°C). Store the car or the tires above 20°F in winter (Tire Rack, storage).

Factory-size fronts to pair with another rear#

Owners say the front and rear don't need to be the same brand, as long as both are the same type (summer with summer, all-season with all-season) and both tires on an axle match (The Lotus Forums, LotusTalk). These 235/40R17 road tires can go with a rear from the table above:

The other 235/40R17 tires on sale (Toyo RA1, R888R, RR and R, Pirelli P Zero Trofeo Track, Nankang Sportnex CR-S) are track tires.

Which to choose#

1. Mostly dry, warm-weather driving, with the Red Race chip: Michelin Pilot Sport 4S, or the Bridgestone Potenza Sport EVO, on 245 fronts with rack lock stops.
2. Driving on cold days too: Michelin Pilot Sport All Season 4, as in the Price Estimate, or the Continental DWS 06 Plus to save $130.
3. Keeping the factory sizes and steering: Kenda Vezda Summer MP+, or one of the factory-size fronts above with a summer rear.

When the tires arrive, check the DOT date codes before mounting. If you go to 245 fronts, fit the lock stops first and check both sides at full lock. Get a four-wheel alignment after fitting; the Price Estimate doesn't include it.

Sources#

• Lotus Esprit Tyres (Longstone Tyres): factory sizes and original tires.
• Esprit V8 (Lotus Esprit World): wheels, tires and top speed.
• S4s and V8 front tyres - supply issues? (The Lotus Forums, 2025): 245 fronts with rack lock stops.
• Options for front Esprit V8 tires (The Lotus Forums, 2020–2023): owners' tire choices, mixing brands, and old tires.
• Esprit Tyres (Aussie Exotics): 245 Michelin fronts on a V8.
• Tires, 2025 (LotusTalk): finding Esprit sizes, and keeping the same tire type front and rear.
• Can I drive summer performance tires in cold temperatures? and storing them (Tire Rack)
• Bridgestone Unveils New Potenza Sport EVO (Bridgestone, May 2026)

Seats#

Decision: fix existing seats#

Headlights#

Decision: Lotus LED Headlights | DragonWorks Performance#

The kit is two plug-and-play LED bulbs with CAN-bus adapters, $59.99 on October 15, 2026. Confirm the bulb size and how many your headlamps take before ordering.

Photos#
